Onyx Athos 5 Wide Wood Burning Stove

SKU: OX-ATH5-WD Category:

Description

Athos Wood Burning & Multi-Fuel Stoves

A celebration of classic stove design, the Onyx Athos wood burning and multi-fuel stove range combines traditional styling with modern performance, offering efficient heating in a timeless, heritage-inspired form.

Timeless Warmth, Classic Elegance

Representing the pinnacle of traditional stove design, the Onyx Athos wood burning and multi-fuel stove range blends the charm of heritage aesthetics with cutting-edge engineering. Built on decades of expertise in solid fuel innovation, Athos stoves deliver powerful performance and enduring style – bringing the comforting glow of real fire into your home with grace and authenticity.

Athos Wood Burning & Multi-Fuel Stoves Features

  • Nominal heat output range: 4.8kW-5kW
  • Maximum efficiency across range: 82%
  • A and A+ energy rated
  • High-efficiency solid fuel stoves
  • Cleanburn & Airwash systems
  • Two sizes: 5 and 5 Wide
  • Athos 5 is a dedicated wood burning stove
  • Athos 5 Wide features fixed grate, for occasional burn of smokeless fuel
  • Ecodesign Compliant
  • DEFRA Smoke Control Area exempt
  • Convector Heat System
  • External air supply compatible
  • 12mm hearth compatible
  • Graceful, traditional design
  • Stylish handle, with black knurled grip and champagne ends
  • Cast iron and heavy gauge steel construction

Model Options

Available as 5 and 5 Wide models – each Athos stove is constructed to deliver exceptional warmth and timeless style.

The Athos 5 Wide offers a fixed grate, for occasional burning of smokeless fuels as well as wood.

Specifications

Specification Athos 5 Wide
Nominal Heat Output 5kW
Heat Output Range 2.5kW – 7kW
Max Efficiency 79.5%
Energy Rating A
Flue Outlet (Top and Rear) 128mm (5”)

Technical Dimension Matrix

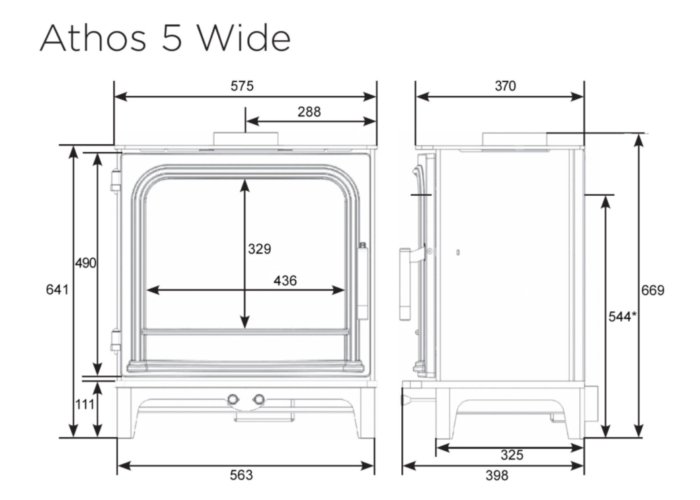

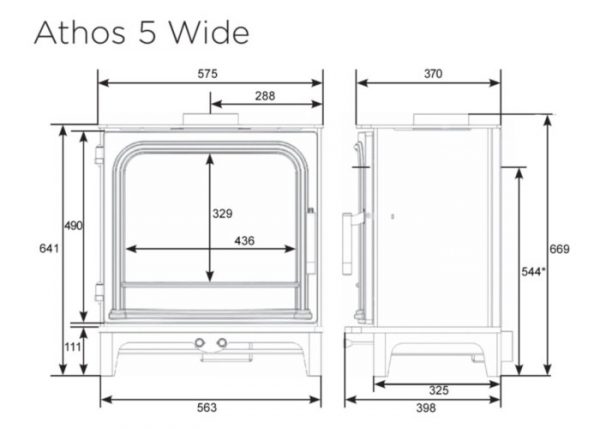

Onyx Athos 5 Wide Dimension Diagram
Model A B C D E F G H I J* K L M N ø
Athos 5 585 512 329 433 111 500 294 366 596 456 367 300 256 128
Athos 5 Wide 641 575 370 490 111 563 329 436 669 544 398 325 288 128

Additional information

Weight 55 kg
