Description

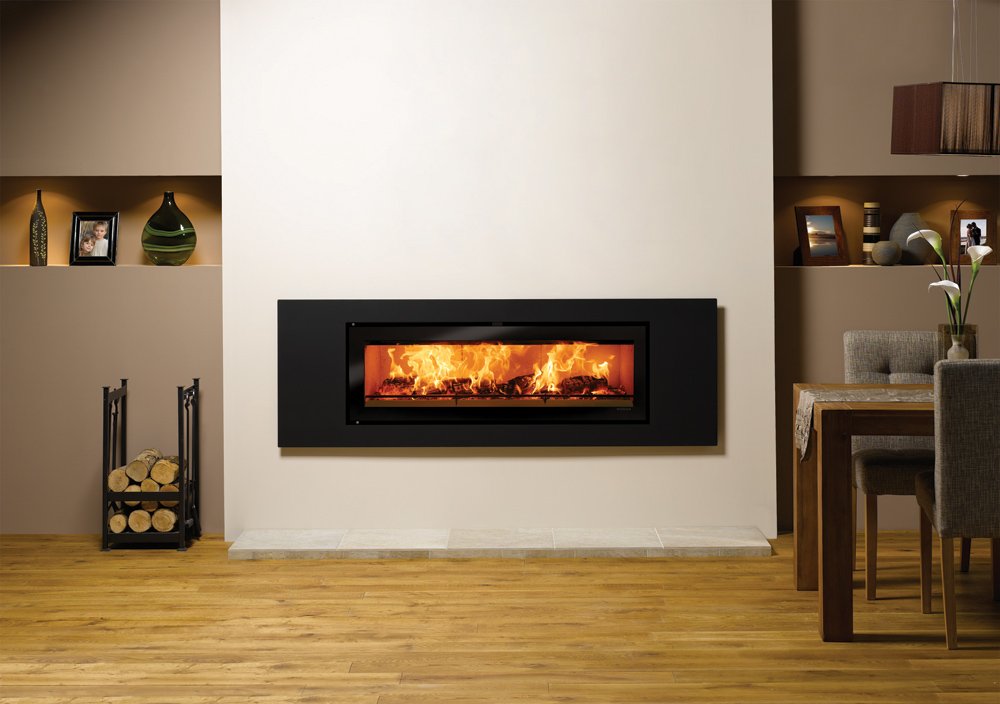

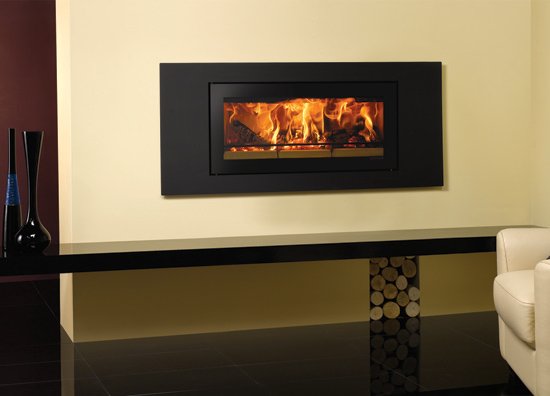

Studio Steel Inset Wood Burning Fire
The Ecodesign Stovax Studio Steel inset fire is for those with large spaces who wish to create a greater presence with their choice of wood burning fireplace. Finished in Metallic Black, the Studio Steel’s wide frame instantly creates a distinctive and individual focal point that can be further matched to your interior space by choosing from the various sizes available.
Key Facts
| Specification | Details |
|---|---|
| Brand | Stovax |
| Ecodesign Plus | ✓ |
| High Efficiency | Up to 77.8% |
| Energy Efficiency Class | A |
| Boost Setting | ✓ |
| Flue Connection | 153mm (6 inches) top |
| Suitable for Smoke Control Areas* | ✓ |
Studio Steel Sizes
| Model | Heat Output | Max Log Length | Frame Width (mm) | Frame Height (mm) | Efficiency |
|---|---|---|---|---|---|
| Studio 500 | 5.0kW | 250mm | 1010 | 567 | 75.8% |
| Studio 1 | 5.0kW | 300mm | 1203 | 567 | 77.8% |
| Studio 2 | 8.5kW | 400mm | 1439 | 622 | 76.3% |
| Studio 3 | 12.6kW | 500mm | 1926 | 647 | 76.1% |
*Sizes 500, 1 and 2 only. When fitted with a Smoke Control Kit and used in accordance with the operating instructions.
